Hexagonal Wire Netting
Hexagonal Wire Netting is also known as Chicken Netting, or Hexagonal Wire. Dingzhou Lianxin Metal Produce Co., Ltd. produces hexagonal wire netting in three varieties: galvanized iron, PVC coated and stainless steel. Varieties of Hexagonal Wire Netting:

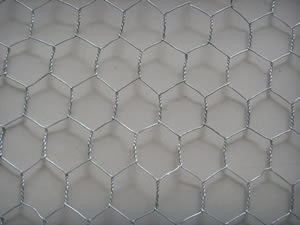

Hexagonal wire netting: hot dipped galv.after weaving
Hexagonal wire netting: galv. before weaving
Hexagonal wire netting: electric galv.after weaving

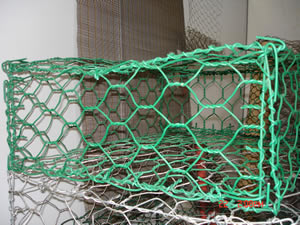

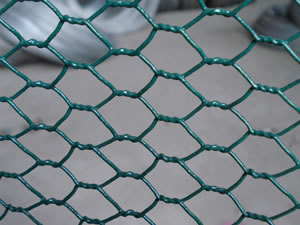

Hexagonal wire netting: pvc-coated
Hexagonal wire netting: in stainless steel
Application: Hexagonal Wire Netting is used in a number of industries, as fence for poultry, farms, bird cages, tennis court, also used as light reinforcement in splinter proof glass and cement concrete, laying of roads, or used for insulation in cold storage, and other structure.
Galvanized hex. wire netting in normal twist | ||
Mesh | Wire Gauge(BWG) | |
Inch | MM | |
3/8'' | 10mm | 27.26.25.24.23.22.21 |
1/2'' | 13mm | 25.24.23.22.21.20 |
5/8'' | 16mm | 27.26.25.24.23.22 |
3/4'' | 20m | 25.24.23.22.21.20.19 |
1'' | 25mm | 25.24.23.22.21.20.19.18 |
1-1/4'' | 32mm | 22.21.20.19.18 |
1-1/2'' | 40mm | 22.21.20.19.18.17 |
2'' | 50mm | 22.21.20.19.18.17.16.15.14 |
3'' | 75mm | 21.20.19.18.17.16.15.14 |
4'' | 100mm | 17.16.15.14 |
Galvanized hex. wire netting in reverse twist | ||||
Mesh | Wire Gauge | Reinforcement | ||
Inch | MM | BWG | Width | Strand |
1'' | 25mm | 22.21.20.19.18 | 2'' | 1 |
1-1/4'' | 32mm | 22.21.20.19.18 | 3'' | 2 |
1-1/2'' | 40mm | 20.19.18 | 4'' | 3 |
2'' | 50mm | 20.19.18 | 5'' | 4 |
3'' | 75mm | 20.19.18 | 6'' | 5 |
Hex. wire netting PVC-coated | ||
Mesh | Wire Gauge (MM) | |
Inch | MM | |
1/2'' | 13mm | 0.9mm 1.0mm |
1'' | 25mm | 1.0mm 1.2mm 1.4mm |
1-1/2'' | 40mm | 1.0mm 1.2mm 1.4mm 1.6mm |
2 | 50mm | 1.0mm 1.2mm 1.4mm 1.6mm |
